Project :: Queen Victoria
Copper, Silver, Gold
Nelson, B.C.

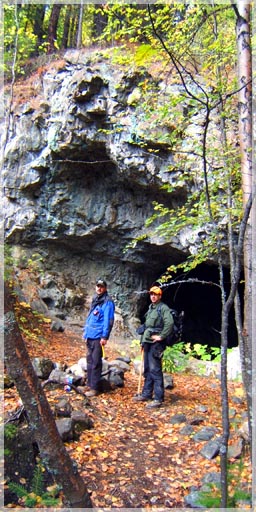

The old Queen Victoria high graded copper mineThe Queen Victoria project is a potential prospect for a copper silver deposit. It is conveniently located approximately 11 km southwest of the city of Nelson and one km off of Highway #3A.

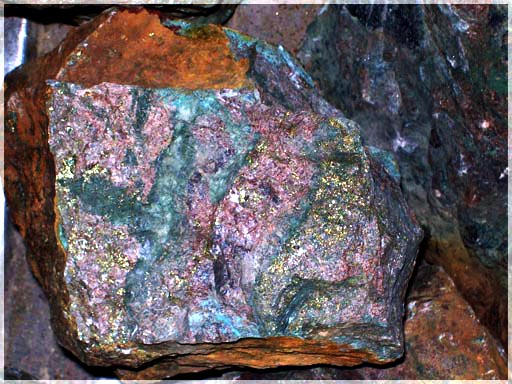

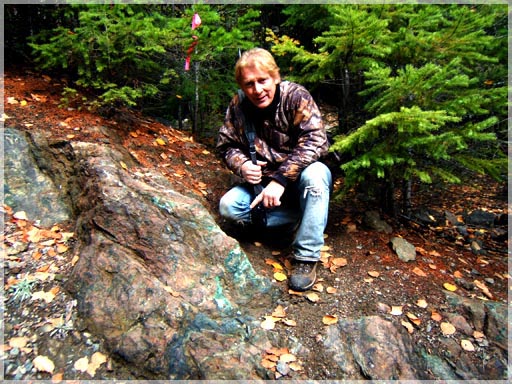

(Click to enlarge)   Malachite and Chalcopyrite stained boulder / Queen Victoria
Malachite and calchopyrite in boulder near old Queen Victoria adit

The old Queen Victoria mine area was discovered in 1890 and mining was done intermittently on the southern portion of the property from 1907 to 1918. In 1956 a mill was set up and most of the mining concentrated on the high grade core of the mineralized zones. The total documented production was 45,352 tonnes @ 672 metric tonnes of copper, 950,010 g silver and 7,651 g of gold from 1907 to 1961. (BC MINFILE O82FSW082)

The following chart shows the years of production but the information is historic and consequently not NI 43-101 compliant.

Year Tonnes Mined Mineral Gms Recovered
1914 7,194 Cu 91,247,000
    Ag 88,799
    Au 156
1915 810 Cu 15,686,000
    Ag 20,404
    Au 778
1916 1,772 Cu 38,297,000
    Ag 37,199
    Au 93
1917 210 Cu 4,344,000
    Ag 16,702
    Au
1918 44 Cu 1,111,000
    Ag 1,897
    Au 62
1926 26 Cu 608,000
    Ag 871
    Au 31
1927 30 Cu 686,000
    Ag 715
    Au
1956 4,397 Cu 22,696,000
    Ag 300,082
    Au 1,586
1961 54 Cu 2,365,000
    Ag 2,488
    Au

The local geology is a repetition sequence of tuffaceous sediments in the west, with lenses of augite flows (Evans, 1990). Moving eastward and the sequence becomes volcanic flow material with abundant pyroxenite. Mixed pyroclastics and banded tuffs are next, followed by massive volcanic flows. A mixture of pyroclastic flows and sediments of both the Elise and Ymir Groups occur on the eastern edge of the sequence.

Folded vein system / Queen Victoria
Queen Victoria Folded Vein System (in back)

The main mineralized zone is described as irregular bands of garnet, epidote and actinolite with minor disseminated grains of magnetite and pyrrhotite (Minfile # 082FSW082). These bands alternate with other bands of quartzite and schist material and vary in width up to 15 meters. The footwall material is generally highly fractured k-spar porphyry, while the hangingwall is of altered quartzite composition.

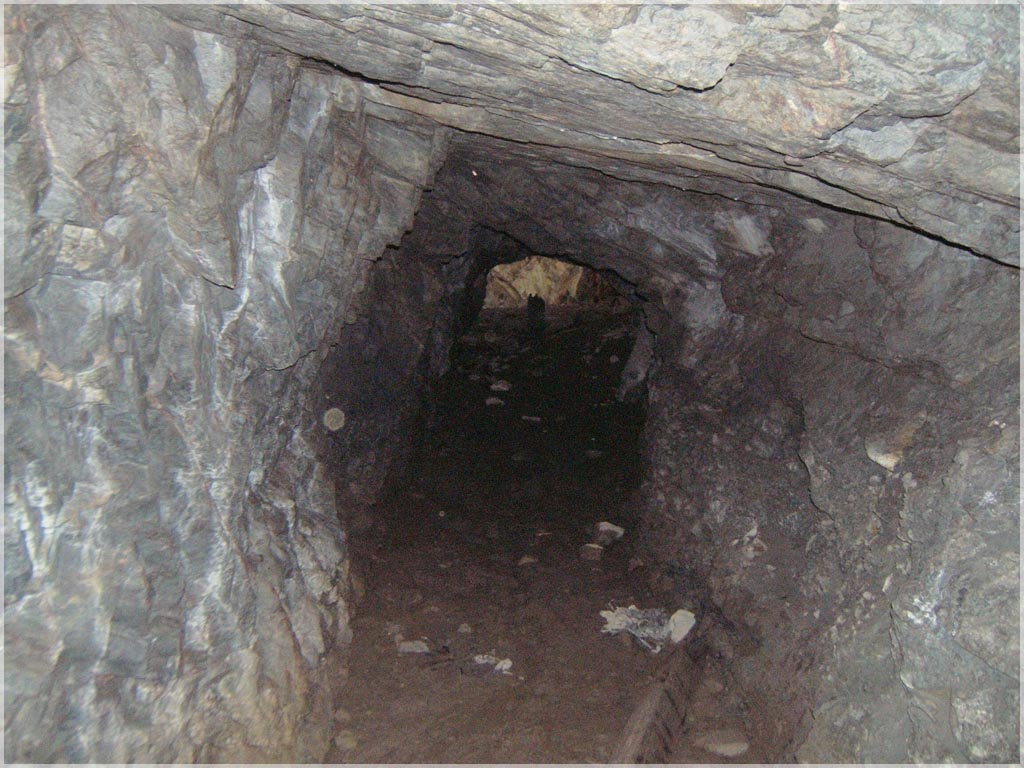

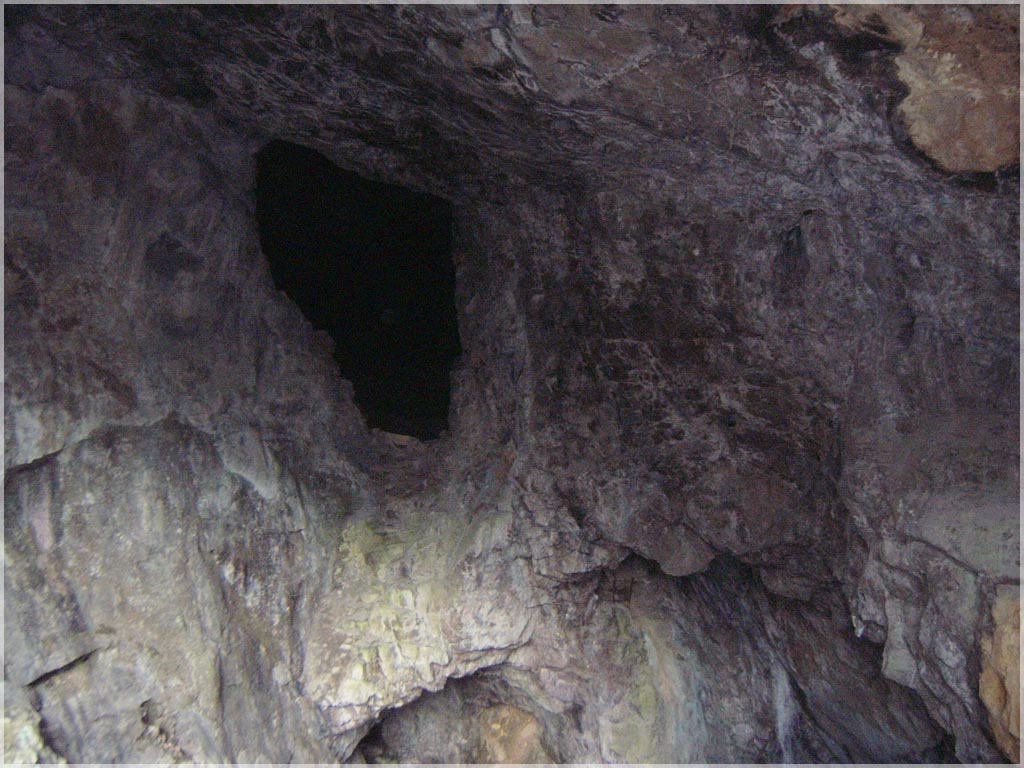

Adits and stope / Queen VictoriaAdits and stope / Queen Victoria

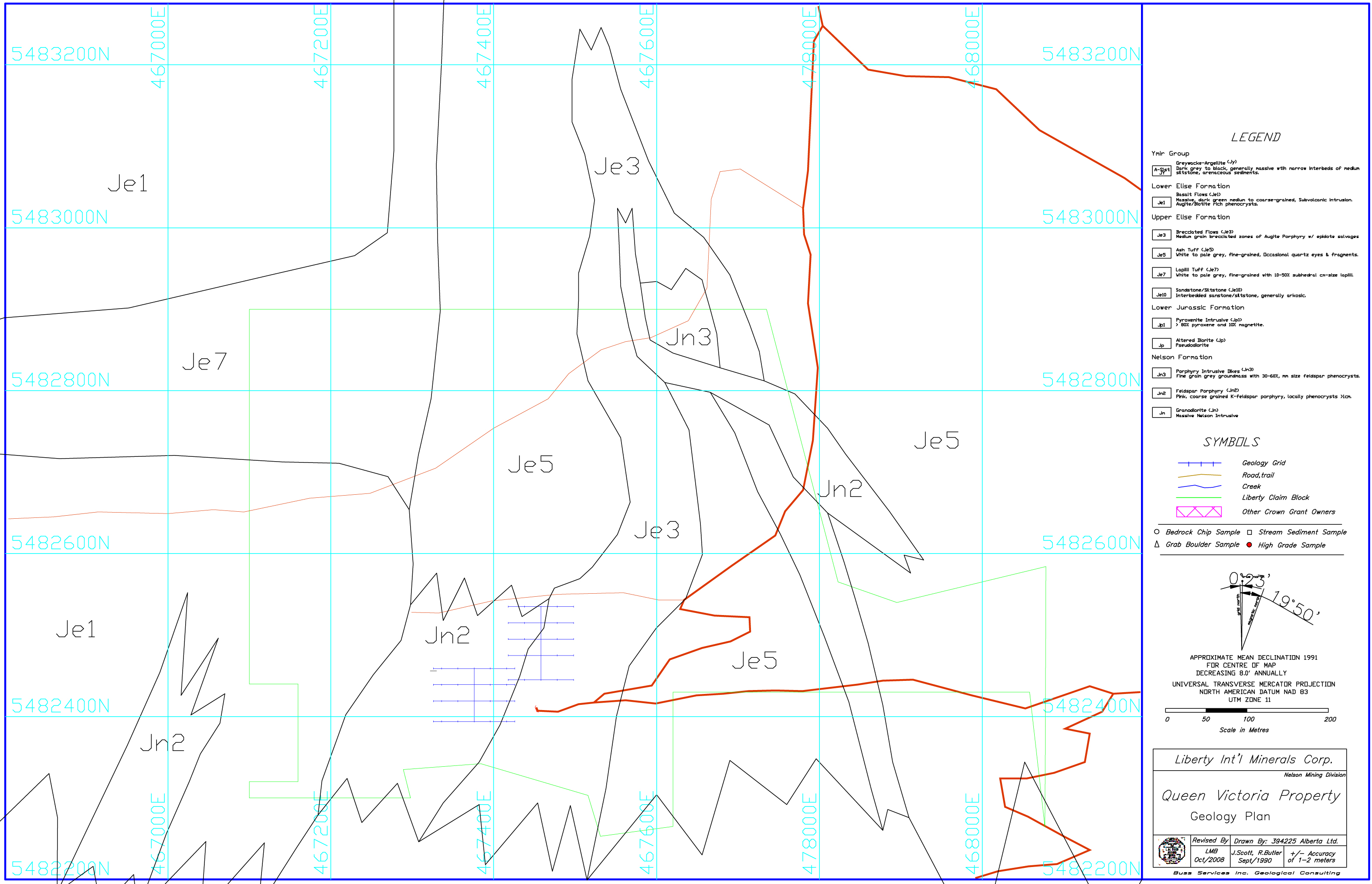

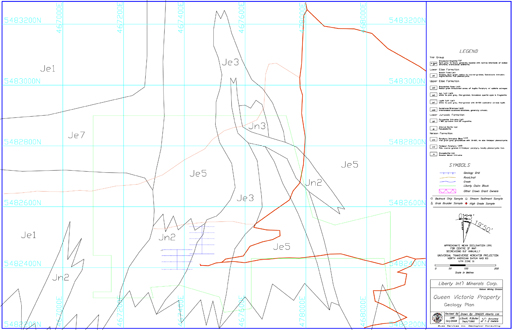

Geology Plan / Queen Victoria - Click for Full Size

Copper mineralization occurs in an easterly dipping folded sequence of silicified limestone, dark grey quartzite and argillites of the Ymir Group (Minfile # 082FSW082).

The irregular disseminated and clusters of chalcopyrite, pyrite, with minor bornite mineralization are most abundant at the contact with the granodiorite A number of small exploration projects were conducted over the years of 1955, 1960, 1967 and 1990. Most notable was the 1960 program which included a short 12 hole diamond drill program of which the Minfile record states that four of the southwest holes intersected a 12 meter thick mineralized zone but did not explain the grades.
Copper mineralization occurs in an easterly dipping folded sequence of silicified limestone, dark grey quartzite and argillites of the Ymir Group. (MINFILE 082FSW082) The irregular disseminated and clusters of chalcopyrite, pyrite, with minor bornite mineralization are most abundant at the contact with the granodiorite.

Heavy malachite staining indicating copper mineralization Two chip samples collected approximately 200 meters north of the old QV adit in September 2007 by 49er Creek Gold Corp (former owner of the claims from whom Liberty purchased them) returned values of 5.99% copper with 66 g/t silver and 1.98% copper. (BC MINFILE O82FSW082)

Three surface chip samples collected by L. Buss PGeo in August 2008 returned values of 0.60% copper and 4.6 g/t silver;  3.34% copper and 28.6 g/t silver;  and 1.83% copper and 17.8 g/t silver.  (Eco Tech Lab Certificate of Assay AK 2007-1106

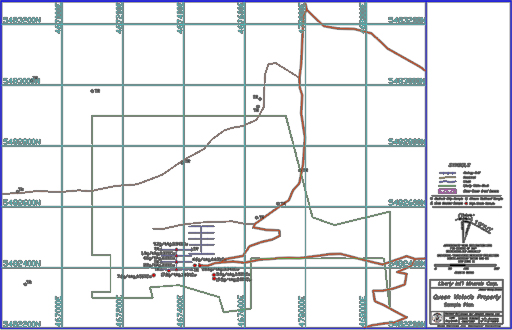

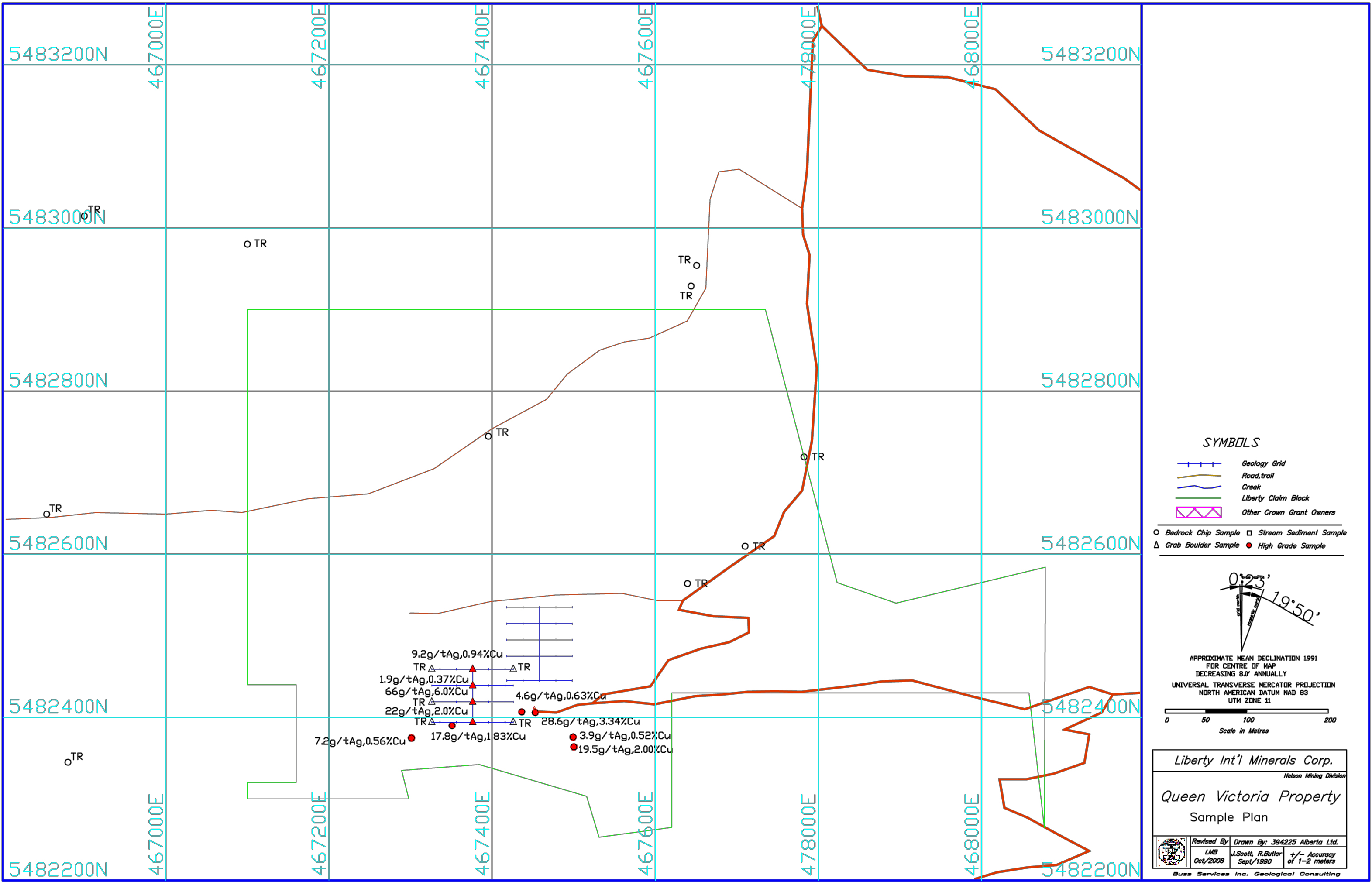

Sample Plan / Queen Victoria

The geological setting of the property does appear favourable for large tonnage - low grade copper - silver, porphyry type deposit. Geological mapping resulted in the location of a mineralized syenite porphyry, along the western perimeter of the main folded mineralized zone. The syenite unit has not been explored much and the potential for other porphyries on the property are likely. The workings on the main fold lense are relatively shallow, and still contain good grade on the walls. Only the high grade core was mined.

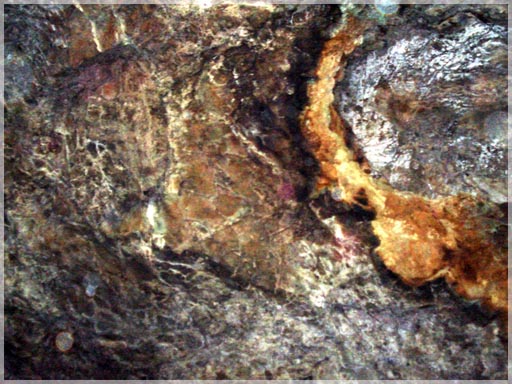

Signs of mineralization to NW of old workings / Queen Victoria

Very little is known regarding this tenure group as most exploration was concentrated around the adit. Liberty intends to correlate and interpret all the historic data, conduct further geochemistry and a geophysical survey over the area in anticipation of delineating a more comprehensive drill program on the property.

Year round access to the Queen Victoria is excellent as it is located only a kilometer off the main highway with abundant logging roads throughout. A large hydro generation station is immediately south of the property on the Kootenay River and the Trail smelter is less than 50 km away.
